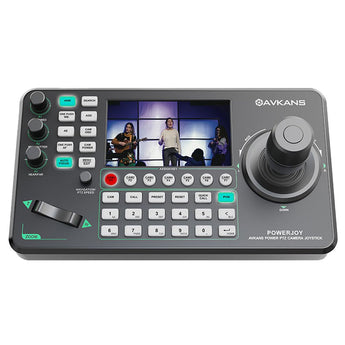

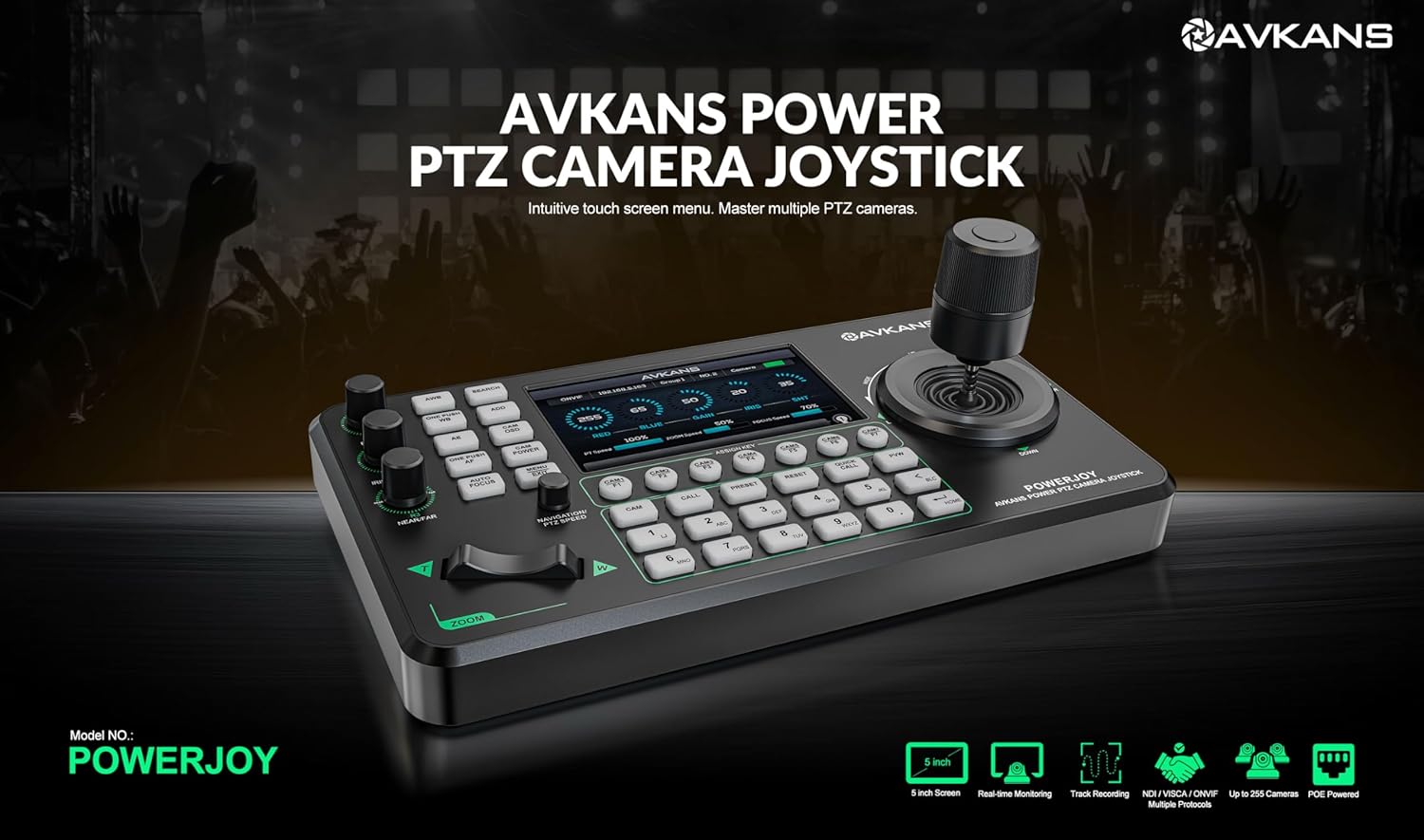

AVKANS PTZ Camera Joystick Controller with 5 Inch Display Preview - PowerJoy
- 🌟New Arrival, Big Deal Today, Don't Miss it 🌟 AVKANS POWERJOY PTZ CONTROLLER - IP POE PTZ Controller with 4D Joystick desiged for Church, House of Worship, School, Video Conference, Live Event Live Streaming, and Even Security High Speed PTZ Cameras. This is the New Power Joystick You Want!
- 🌟MULTI-PROTOCOL FOR ANY PTZ CAMERA CONTROL - AVKANS Powerjoy Camera Controller supports NDI, Visca Over IP, SONY-VISCA Over IP Protocols over IP/Network Connection, supports Visca, Pelco-D/P protocols over RS232, RS485, RS422 serial connection. It works with most of HDMI PTZ Cameras and NDI Cameras in the markets.
- 🌟EASY TO USE/SETUP with POE Supported - Adding Cameras into this Joystick Controller is very easy: serach and Add it, then you can control the cameras like a Professional Operator. You can control camera PTZ movement( Pan/Tilt/Zoom), Auto/manual focus, White balance, Iris, Exposure, Presets, Menu, and PTZ Speed, Y-invert, Flip, Freez and even auto tracking on/off.
- 🌟🌟 5INCH LCD PREVIEW MONITOR WITH HIGH RESOLUTION - Live Preview your PTZ Cameras with Bigger Monitor at higher resolution. It is very helpful when you control the PTZ Cameras precisely. Note: Pls setup resolution to 1080P when you connect 4K PTZ Cameras.
- 🌟🌟🌟 7 CAMERA SHORTCUT KEYS WITH USER-DEFINED FEATURES - You can switch to any cameras quickly with one key pressing. You are Special Operator - You can design 7 special features for these 7 keys, enter the visca commands, and enjoy your operation.
- 🌟🌟🌟 NDI ABILITY - This camera controller comes without NDI key, but you can join our beta tester to enjoy free NDI keys. Note: You can control PTZ movement, Preset, Zoom in/out only over NDI protocol. That is the limit of NDI SDK protocol yet. Not a issue of PTZ controller.
- Notices: When ovif or NDI protocol selected, live video will be easy to be seen on LCD display. When use Visca over IP, you have to set up the URL to preview the video. Different brands of PTZ camera has differnt RTSP URL format. Pls refer to the camera manual.

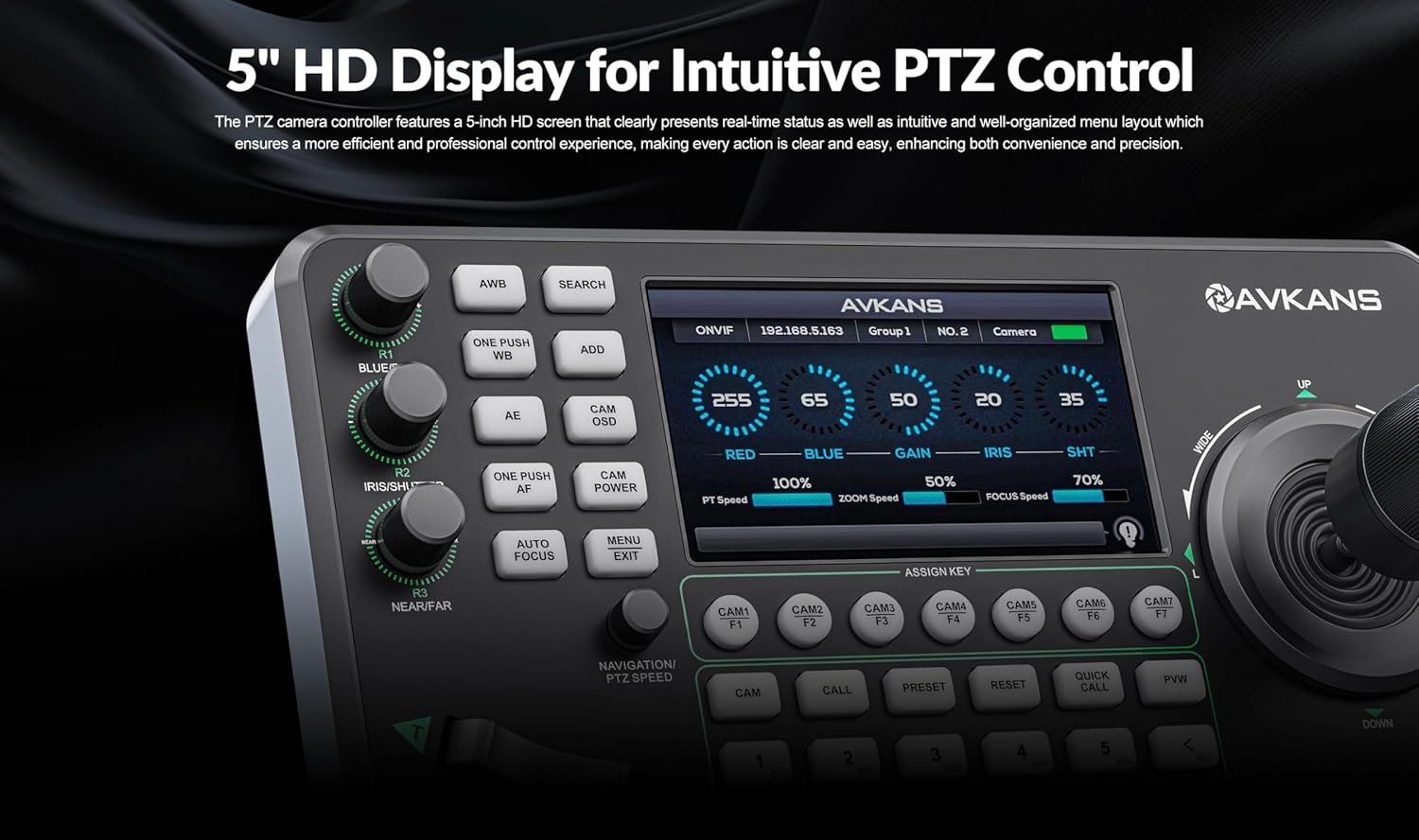

5-Inch Touchscreen Display
The PTZ camera control keyboard is equipped with a new 5-inch touchscreen, allowing direct configuration of commonly used camera menu parameters on the screen and real-time monitoring of the camera status.

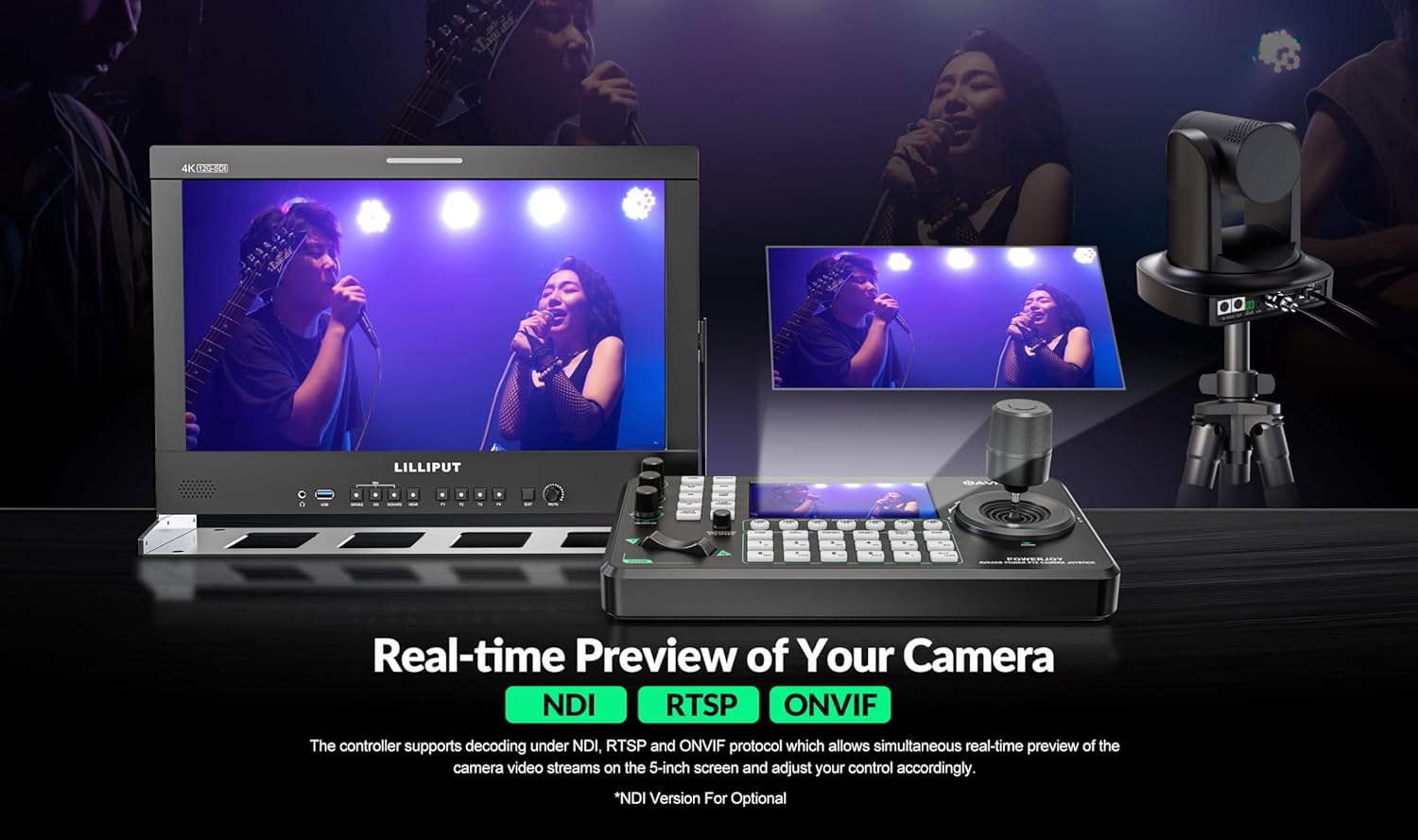

Real-Time Camera Image Preview
NDI、RTSP、ONVIF、The control keyboard supports decoding of NDI, RTSP, and ONVIF protocols, allowing real-time preview of camera images on the 5-inch screen while enabling camera control.*The NDI version is an optional feature.

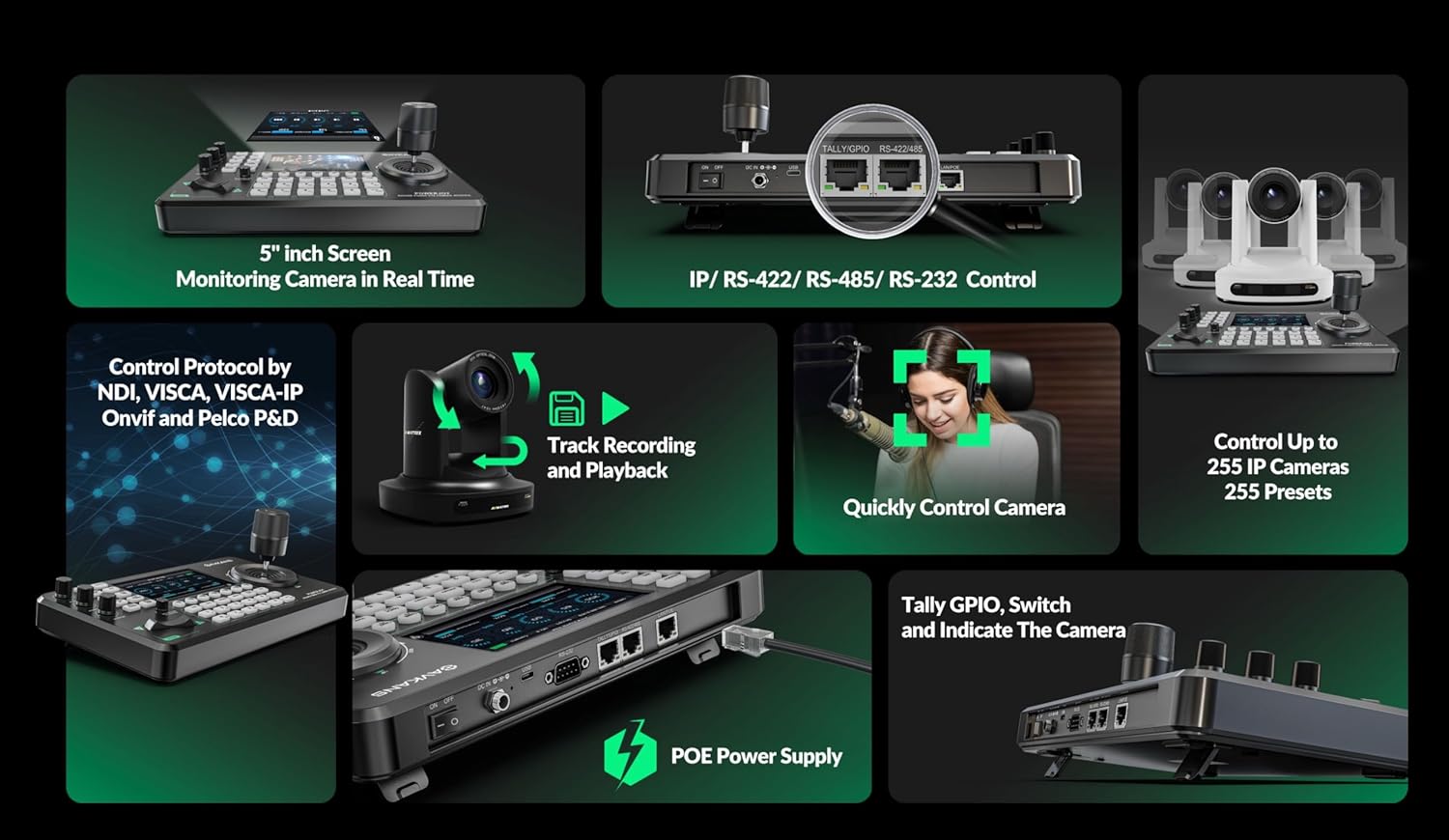

Camera Control Protocols
The control keyboard is equipped with a variety of control interfaces, including IP, RS-422/RS-485, and RS-232. These abundant control interfaces can easily match cameras with different interfaces. It enables cross-protocol hybrid control on a single controller through operating protocols such as ONVIF, VISCA, VISCA-IP, Pelco P&D, and NDI (NDI optional).
Track Recording and Playback
The PTZ camera controller supports track loop function which allows you to record camera path (pan, tilt, zoom)
and replay it whenever required without having to manually control the camera.

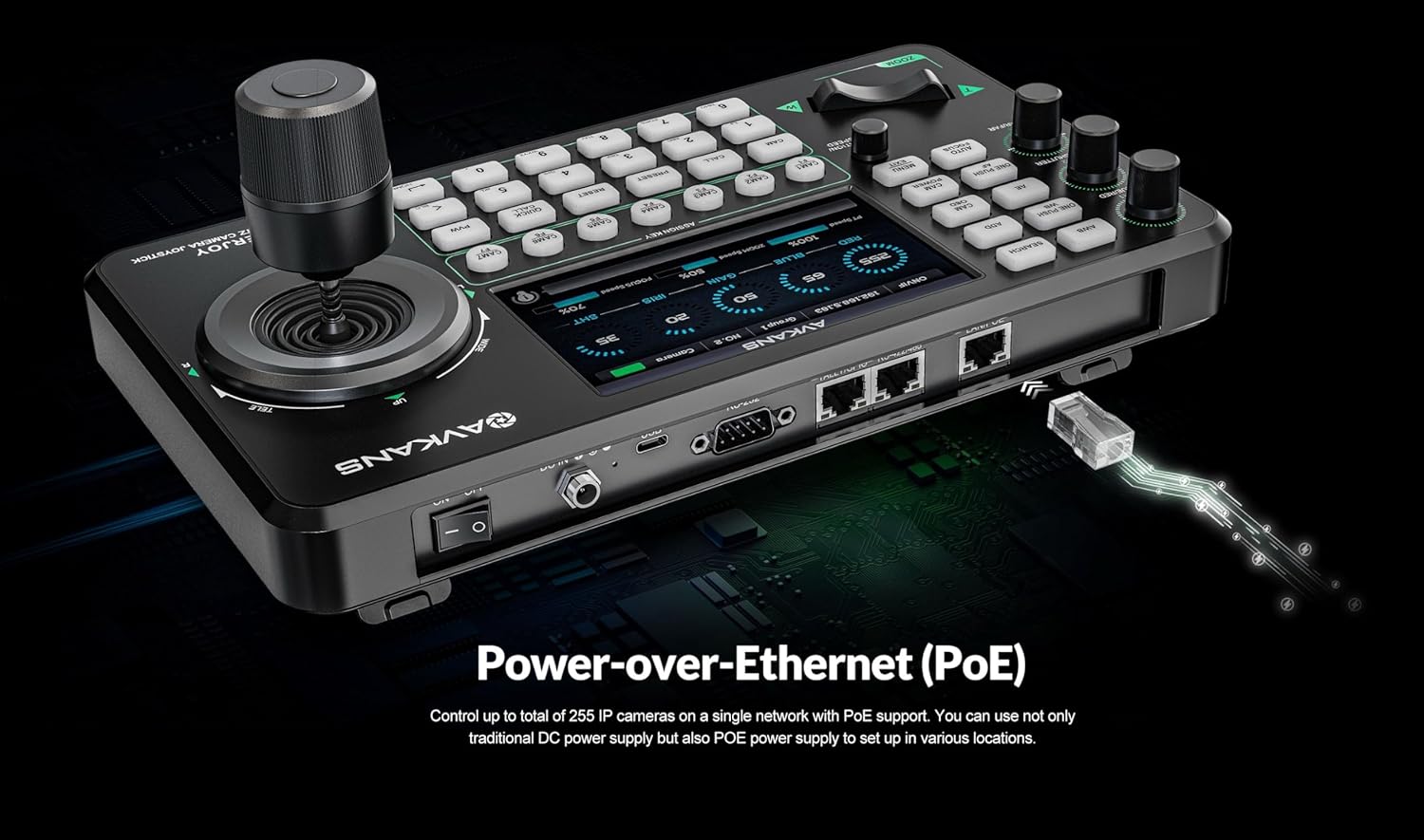

Power over Ethernet (PoE)
In addition to using a traditional DC power supply, it can also connect to a PoE system via an Ethernet cable to realize power supply and data transmission simultaneously, thereby simplifying on-site wiring.Up to 100 network cameras can be controlled on a PoE-supported network.
1xRS-232 & 1x RS-485/422 Controlinterfaces
RS-232,RS-422 and RS-485 communication support protocols such asPELCO-D,PELCO-P and VISCA,. Each serial port can connect up to7 cameras under the Visca protocol.
Ergonomic Stand Design
The control keyboard is equipped with an ergonomically designed stand, providing a better control experience and a comfortable screen viewing angle.
